AHX 30/500 BGL
6866017483-MansonFitting sleeves
Quote and order options

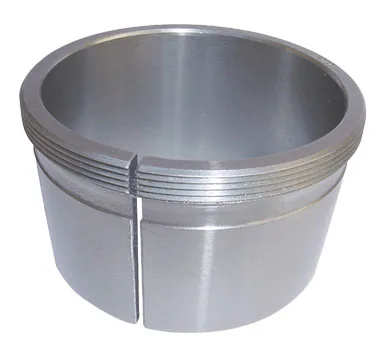

BGL AHX 30/500 withdrawal sleeve: shaft diameter 480 mm, bearing bore diameter 500 mm, thread Tr 540x6, overall length 209 mm, taper 1:12. Net weight 42.5 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
AHX 30/500 BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Fitting sleeves
- Part number
- AHX 30/500
- Overall length
- 209 mm
- SKU
- 6866017483-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 42.5 kg
- Volumetric weight (desi)
- 32.28
Weight
- Catalog net weight
- 42.5 kg
Dimensions
- Compatible bearing bore
- 500 mm
- Shaft diameter
- 480 mm
Compatibility
- Compatible hydraulic nuts
- HMV 96E; HMV 108E
- Compatible locking clips
- MS 3096-30/500
- Compatible lock nuts
- HM 3096; HML 108T
Properties
- Nominal thread
- Tr 540x6
- Taper ratio
- 1:12
