AHX 3196 G BGL
6866017477-MansonFitting sleeves
Quote and order options

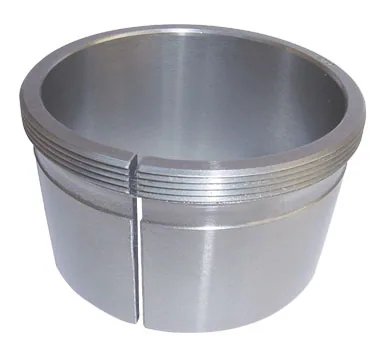

BGL AHX 3196 G withdrawal sleeve: shaft diameter 460 mm, bearing bore diameter 480 mm, thread Tr 500x5, overall length 295 mm, taper 1:12. Net weight 63.1 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
AHX 3196 G BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Fitting sleeves
- Part number
- AHX 3196 G
- Overall length
- 295 mm
- SKU
- 6866017477-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 63.1 kg
- Volumetric weight (desi)
- 28.392
Weight
- Catalog net weight
- 63.1 kg
Dimensions
- Compatible bearing bore
- 480 mm
- Shaft diameter
- 460 mm
Compatibility
- Compatible hydraulic nuts
- HMV 92E; HMV 100E
- Compatible locking clips
- MS 3188-MS 3192
- Compatible lock nuts
- HM 3192; HM 31/500
Properties
- Nominal thread
- Tr 500x5
- Taper ratio
- 1:12
