AHX 3224 BGL
6866017243-MansonFitting sleeves
Quote and order options

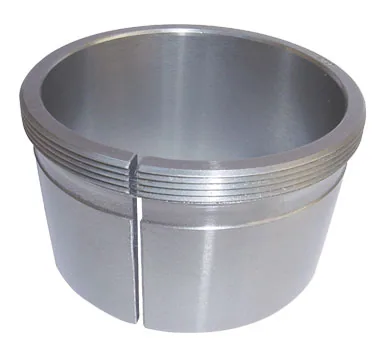

BGL AHX 3224 withdrawal sleeve: shaft diameter 115 mm, bearing bore diameter 120 mm, thread M 135x2, overall length 90 mm, taper 1:12. Net weight 1.16 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
AHX 3224 BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Fitting sleeves
- Part number
- AHX 3224
- Overall length
- 90 mm
- SKU
- 6866017243-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 1.16 kg
- Volumetric weight (desi)
- 0.8809
Weight
- Catalog net weight
- 1.16 kg
Dimensions
- Compatible bearing bore
- 120 mm
- Shaft diameter
- 115 mm
Compatibility
- Compatible hook spanners
- HN 23; HN 27
- Compatible hydraulic nuts
- HMV 23E; HMV 27E
- Compatible lock nuts
- KM 23; KM 27
- Compatible lock washers
- MB 23
Properties
- Nominal thread
- M 135x2
- Taper ratio
- 1:12
