AOH 240/1060 BGL
6866018362-MansonFitting sleeves
Quote and order options

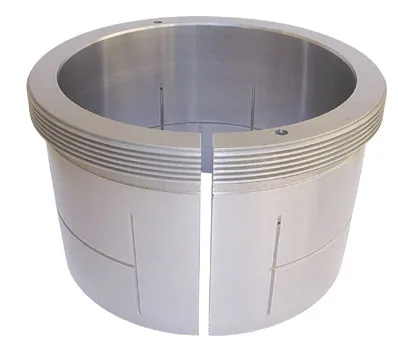

BGL AOH 240/1060 hydraulic withdrawal sleeve: shaft diameter 1000 mm, bearing bore diameter 1060 mm, overall length 498 mm, taper 1:30. Net weight 440 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
AOH 240/1060 BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Fitting sleeves
- Part number
- AOH 240/1060
- Overall length
- 498 mm
- SKU
- 6866018362-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 440 kg
- Volumetric weight (desi)
- 233.3184
Weight
- Catalog net weight
- 440 kg
Dimensions
- Compatible bearing bore
- 1,060 mm
- Shaft diameter
- 1,000 mm
Compatibility
- Compatible hydraulic nuts
- HMV 200E
- Compatible locking clips
- MS 31/1000
- Compatible lock nuts
- HM 31/1000
Properties
- Oil injection hole thread
- 1/4 BSP
- Taper ratio
- 1:30
