AOHX 3196 G BGL
6866018233-MansonFitting sleeves
Quote and order options

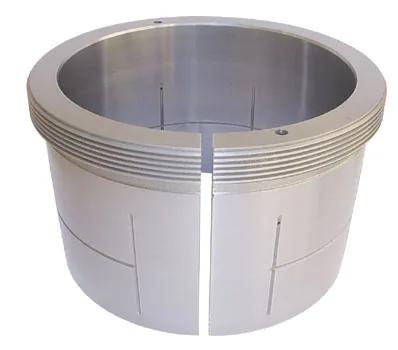

BGL AOHX 3196 G hydraulic withdrawal sleeve: shaft diameter 460 mm, bearing bore diameter 480 mm, thread Tr 500x5, overall length 295 mm, taper 1:12.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
AOHX 3196 G BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Fitting sleeves
- Part number
- AOHX 3196 G
- Overall length
- 295 mm
- SKU
- 6866018233-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 63.1 kg
- Volumetric weight (desi)
- 28.392
Weight
- Catalog net weight
- 63.1 kg
Dimensions
- Compatible bearing bore
- 480 mm
- Shaft diameter
- 460 mm
Compatibility
- Compatible extension tubes
- TE 1/4BSP 01
- Compatible hydraulic nuts
- HMV 92E; HMV 100E
- Compatible locking clips
- MS 3188-MS 3192
- Compatible lock nuts
- HM 3192; HM 31/500
- Recommended hydraulic pumps
- BH 100-0.7 BH 160 BH 160-4.8
Properties
- Nominal thread
- Tr 500x5
- Oil injection hole thread
- 1/4 BSP
- Taper ratio
- 1:12
