BH 100-0.7D BGL
6866019062-PompaHydraulic pumps
Quote and order options

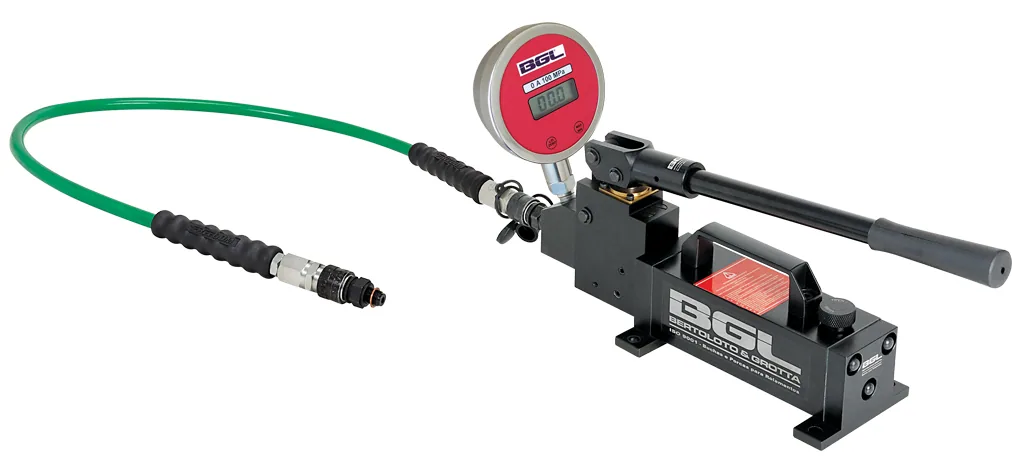

BGL BH 100-0.7D hydraulic hand pump: oil reservoir capacity 0.94 L, usable oil volume 0.7 L, handle force 300 N, outlet connection 1/4" BSP.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
BH 100-0.7D BGL technical data
- Brand
- BGL
- Category
- Maintenance and lubrication products / Hydraulic pumps and equipment / Hydraulic pumps
- Part number
- BH 100-0.7D
- Overall height
- 170 mm
- Overall length
- 410 mm
- Overall width
- 120 mm
- SKU
- 6866019062-Pompa
- HS code (6-digit)
- 841320
- CN code (8-digit)
- 84132000
- GTİP (Turkish customs tariff number, 12-digit)
- 841320009000
- Country of origin
- Brazil
- Net weight
- 12 kg
- Volumetric weight (desi)
- 8.6287
Compatibility
- Compatible hydraulic nut range
- HMV 10E – 84E; all sleeves with 1:12 taper, sleeves with 1:30 taper up to 630 mm bore
Dimensions
- Lever force
- 300 N
- Oil reservoir capacity
- 0.94 L
- Usable oil volume
- 0.7 L
- Pump, accessories and packaging weight
- 5 kg
Properties
- Pump output connection
- 1/4" BSP
- Recommended hydraulic oil
- Hydraulic oil HLP 68
