DY20-75/6H-B16
6866016337-YatakliDisc harrow hub units
Quote and order options

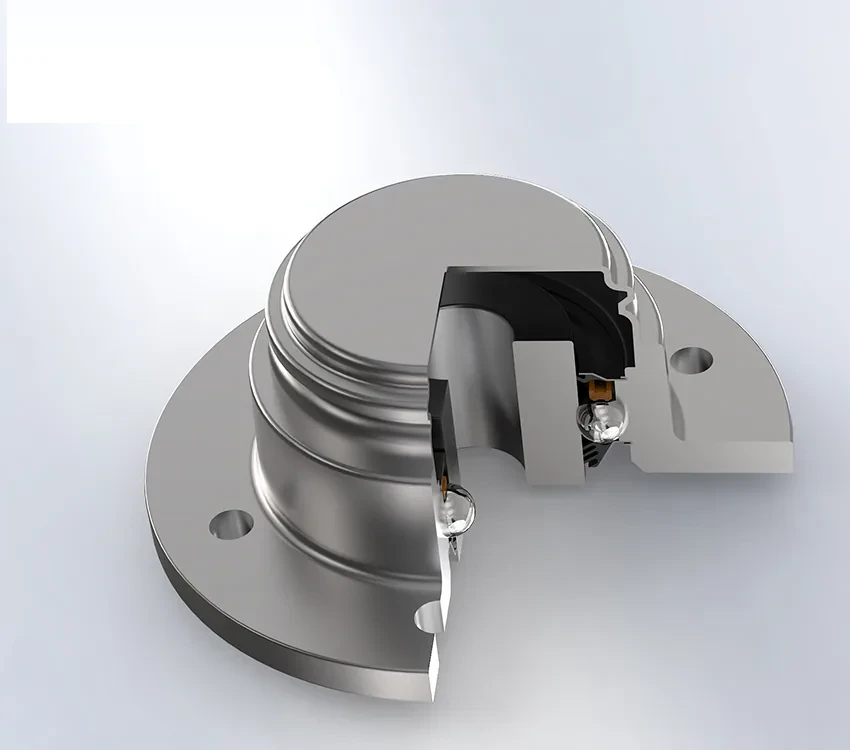

Z&R DY20-75/6H-B16 mounted bearing unit. Bore diameter 16 mm, outside diameter 94 mm, width 18 mm. Basic dynamic load rating 22 kN, basic static load rating 15.2 kN. Weight 0.5 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
DY20-75/6H-B16 technical data
- Brand
- Z&R
- Category
- Rolling bearings and plain bearings / Agricultural bearings / Disc harrow hub units
- Part number
- DY20-75/6H-B16
- Overall length
- 37.7 mm
- Flange overall length
- 24 mm
- Bore diameter (d)
- 16 mm
- Outside diameter (D)
- 94 mm
- Width (B)
- 18 mm
- Basic dynamic load rating C
- 22 kN
- Basic static load rating C0
- 15.2 kN
- Fatigue load limit Pu
- 0.64 kN
- SKU
- 6866016337-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
- Net weight
- 0.5 kg
