DY25-85/4T-M16-T
6866016095-YatakliDisc harrow hub units
Quote and order options

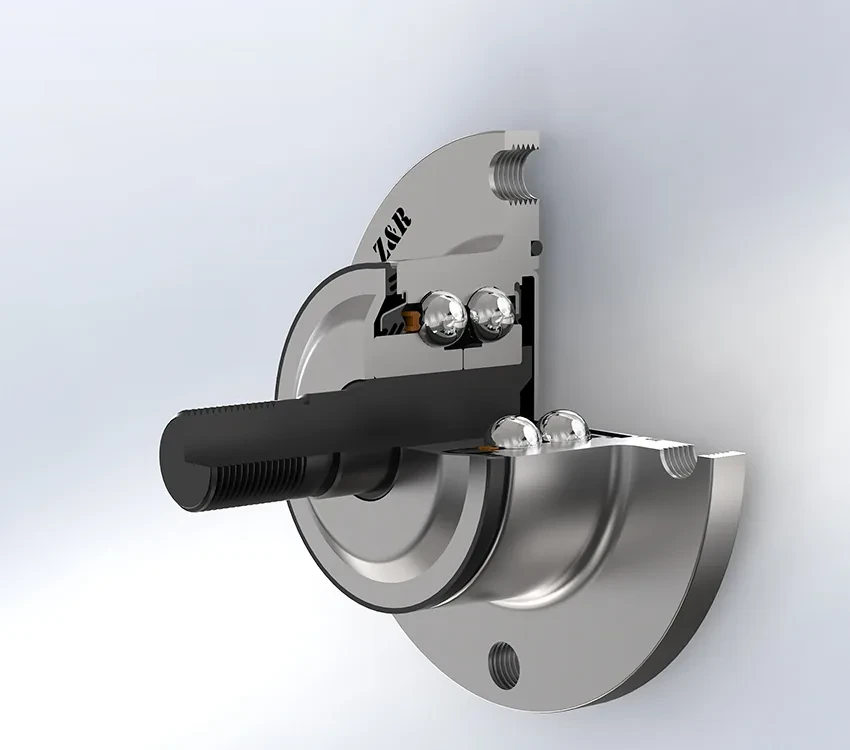

Z&R DY25-85/4T-M16-T mounted bearing unit. Bore diameter 20 mm, outside diameter 100 mm. Basic load ratings: dynamic 32 kN, static 22 kN. Net weight 0.944 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
DY25-85/4T-M16-T technical data
- Brand
- Z&R
- Category
- Rolling bearings and plain bearings / Agricultural bearings / Disc harrow hub units
- Part number
- DY25-85/4T-M16-T
- Overall length
- 73 mm
- D-shape length
- 11 mm
- Flange overall length
- 38 mm
- Thread length
- 24 mm
- Bore diameter (d)
- 20 mm
- Outside diameter (D)
- 100 mm
- D-shape cut-out dimension
- 18.5 mm
- Basic dynamic load rating C
- 32 kN
- Basic static load rating C0
- 22 kN
- Fatigue load limit Pu
- 0.92 kN
- SKU
- 6866016095-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
- Net weight
- 0.944 kg
