DY50-125/4T-M30x2
6866016307-YatakliDisc harrow hub units
Quote and order options

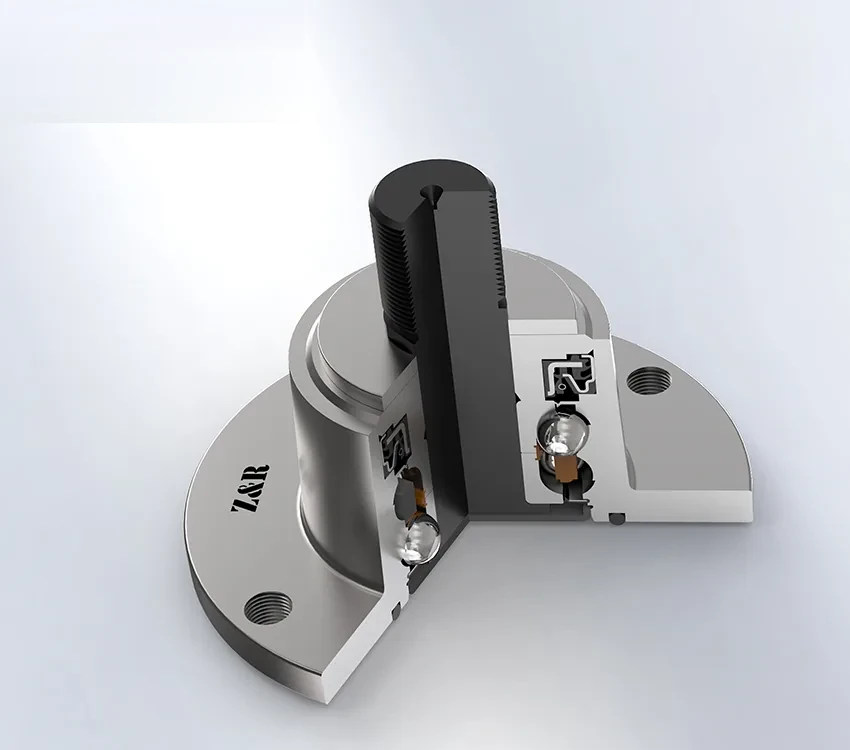

Z&R DY50-125/4T-M30x2 mounted bearing unit. Bore diameter 32 mm, outside diameter 145 mm. Basic load ratings: dynamic 60 kN, static 45.8 kN. Net weight 3.151 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
DY50-125/4T-M30x2 technical data
- Brand
- Z&R
- Category
- Rolling bearings and plain bearings / Agricultural bearings / Disc harrow hub units
- Part number
- DY50-125/4T-M30x2
- Overall length
- 104.3 mm
- D-shape length
- 8 mm
- Flange overall length
- 60 mm
- Thread length
- 30.7 mm
- Bore diameter (d)
- 32 mm
- Outside diameter (D)
- 145 mm
- D-shape cut-out dimension
- 30 mm
- Basic dynamic load rating C
- 60 kN
- Basic static load rating C0
- 45.8 kN
- Fatigue load limit Pu
- 1.92 kN
- SKU
- 6866016307-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
- Net weight
- 3.151 kg
