DY50-98/6T-M22-113
6866016297-YatakliDisc harrow hub units
Quote and order options

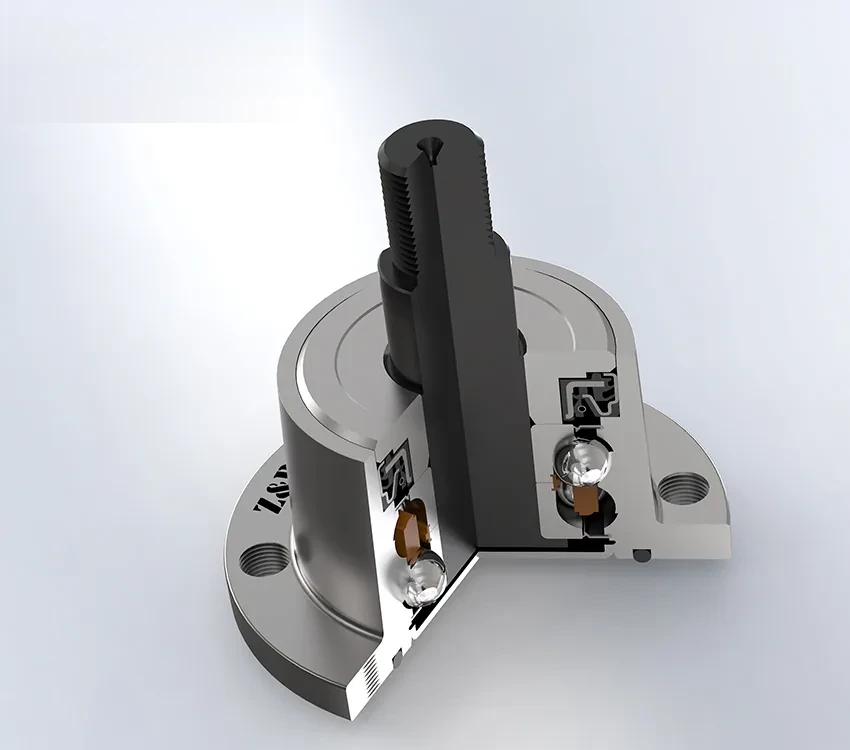

Z&R DY50-98/6T-M22-113 mounted bearing unit. Bore diameter 27.95 mm, outside diameter 117 mm. Basic load ratings: dynamic 60 kN, static 45.8 kN. Net weight 2.54 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
DY50-98/6T-M22-113 technical data
- Brand
- Z&R
- Category
- Rolling bearings and plain bearings / Agricultural bearings / Disc harrow hub units
- Part number
- DY50-98/6T-M22-113
- Overall length
- 113 mm
- D-shape length
- 28 mm
- Flange overall length
- 60 mm
- Thread length
- 25 mm
- Bore diameter (d)
- 27.95 mm
- Outside diameter (D)
- 117 mm
- D-shape cut-out dimension
- 25.4 mm
- Basic dynamic load rating C
- 60 kN
- Basic static load rating C0
- 45.8 kN
- Fatigue load limit Pu
- 1.92 kN
- SKU
- 6866016297-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
- Net weight
- 2.54 kg
