DY5201349411X2
6866016316-YatakliDisc harrow hub units
Quote and order options

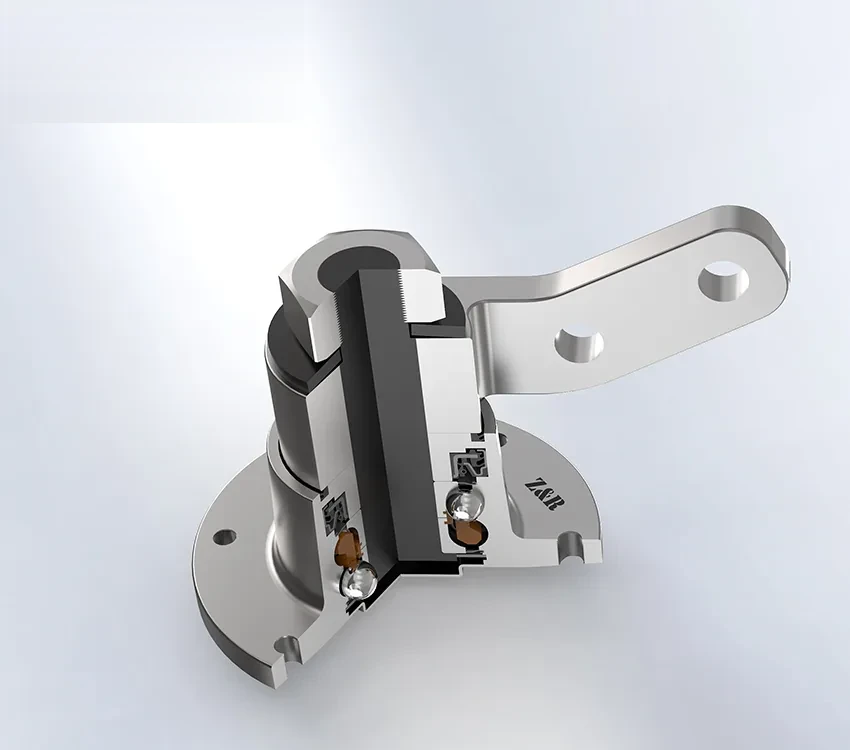

Z&R DY5201349411X2 mounted bearing unit. Bore diameter 17 mm, outside diameter 145 mm. Basic load ratings: dynamic 60 kN, static 45 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
DY5201349411X2 technical data
- Brand
- Z&R
- Category
- Rolling bearings and plain bearings / Agricultural bearings / Disc harrow hub units
- Part number
- DY5201349411X2
- Overall length
- 131.2 mm
- Mounting hole spacing
- 55 mm
- Flange overall length
- 62.2 mm
- Disc radius
- 635 mm
- Disc centre bore
- 45 mm
- Disc harrow arm width
- 40 mm
- Bore diameter (d)
- 17 mm
- Outside diameter (D)
- 145 mm
- Basic dynamic load rating C
- 60 kN
- Basic static load rating C0
- 45 kN
- Fatigue load limit Pu
- 1.93 kN
- Bearing axis to mounting hole
- 68 mm
- Bearing axis to holder end
- 137.7 mm
- SKU
- 6866016316-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
