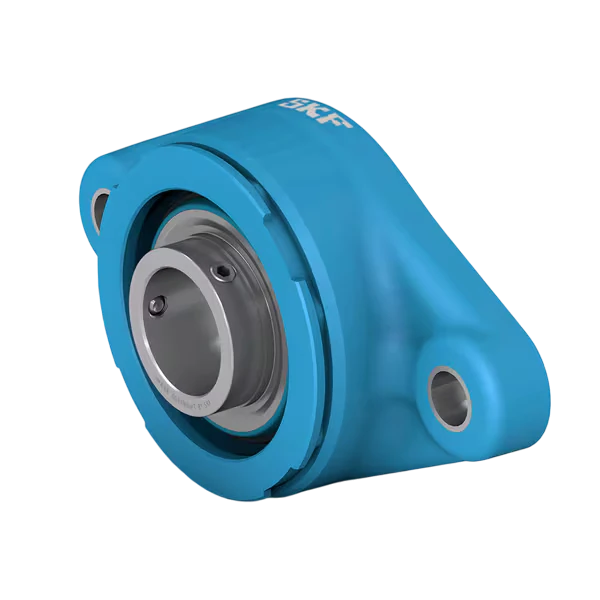

F2BC 107-TPSS SKF
6866003821-YatakliFlanged ball bearing units
Quote and order options
SKF F2BC 107-TPSS flanged ball bearing unit: bore diameter (d) 36.513 mm, bolt hole spacing 130 mm, pilot diameter 82 mm, and basic dynamic load rating C 21.6 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
F2BC 107-TPSS SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- F2BC 107-TPSS
- Overall length
- 92 mm
- Overall height
- 164 mm
- Overall width
- 45 mm
- Set screw hole distance
- 6 mm
- Mounting hole spacing
- 130 mm
- Housing total width
- 36 mm
- Centering diameter
- 82 mm
- Inner ring face to raceway centre
- 25.4 mm
- Bore diameter (d)
- 36.513 mm
- Width (B)
- 42.9 mm
- Basic dynamic load rating C
- 21.6 kN
- Basic static load rating C0
- 15.3 kN
- Mounting hole diameter
- 14.2 mm
- Fatigue load limit Pu
- 0.655 kN
- Flange width
- 17 mm
- SKU
- 6866003821-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 0.575 kg
- Volumetric weight (desi)
- 0.575
