F3BBC 35M-CPSS-DFH SKF
6866003867-YatakliFlanged ball bearing units
Quote and order options

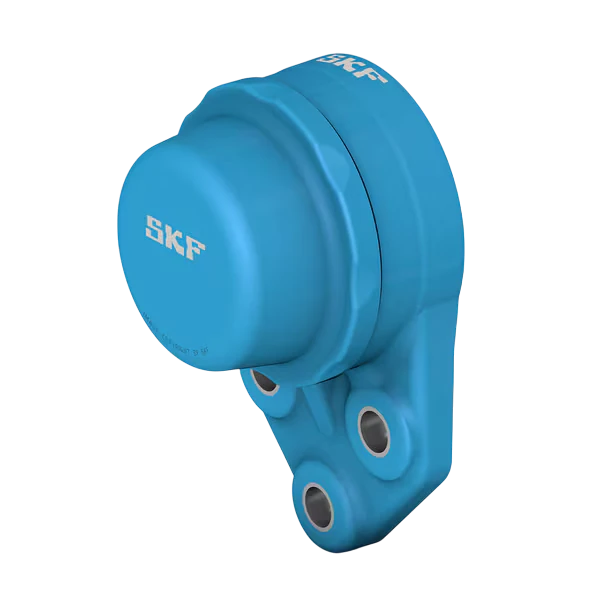

SKF F3BBC 35M-CPSS-DFH flanged ball bearing unit; bore diameter (d) 35 mm, pilot diameter 82 mm, basic dynamic load rating C 21.6 kN, bolt hole diameter 14.2 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
F3BBC 35M-CPSS-DFH SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- F3BBC 35M-CPSS-DFH
- Overall length
- 92 mm
- Overall height
- 155 mm
- Overall width
- 45.4 mm
- Set screw hole distance
- 6 mm
- Flange overall length
- 86 mm
- Housing total width
- 36 mm
- Centering diameter
- 82 mm
- Inner ring face to raceway centre
- 25.4 mm
- Bore diameter (d)
- 35 mm
- Width (B)
- 34.9 mm
- Basic dynamic load rating C
- 21.6 kN
- Basic static load rating C0
- 15.3 kN
- Mounting hole diameter
- 14.2 mm
- Fatigue load limit Pu
- 0.655 kN
- Flange width
- 17 mm
- SKU
- 6866003867-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 0.66 kg
- Volumetric weight (desi)
- 0.66
