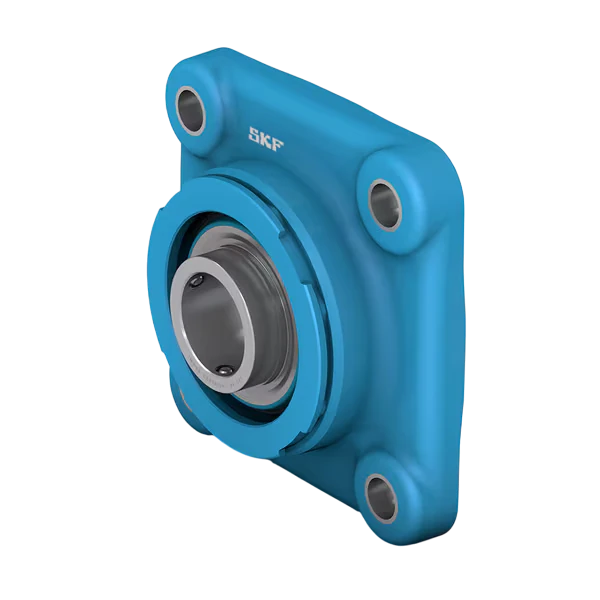

F4BC 35M-TPZM SKF
6866003895-YatakliFlanged ball bearing units
Quote and order options
SKF F4BC 35M-TPZM flanged ball bearing unit: bore diameter (d) 35 mm, bolt hole spacing 92 mm, pilot diameter 82 mm, and basic dynamic load rating C 25.5 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
F4BC 35M-TPZM SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- F4BC 35M-TPZM
- Overall length
- 125 mm
- Overall width
- 44.9 mm
- Set screw hole distance
- 6 mm
- Mounting hole spacing
- 92 mm
- Housing total width
- 36 mm
- Centering diameter
- 82 mm
- Inner ring face to raceway centre
- 25.4 mm
- Bore diameter (d)
- 35 mm
- Width (B)
- 42.9 mm
- Basic dynamic load rating C
- 25.5 kN
- Basic static load rating C0
- 15.3 kN
- Mounting hole diameter
- 14.2 mm
- Fatigue load limit Pu
- 0.655 kN
- Flange width
- 17 mm
- SKU
- 6866003895-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 0.733 kg
- Volumetric weight (desi)
- 0.733
