F4BC 40M-TPSS SKF
6866003897-YatakliFlanged ball bearing units
Quote and order options

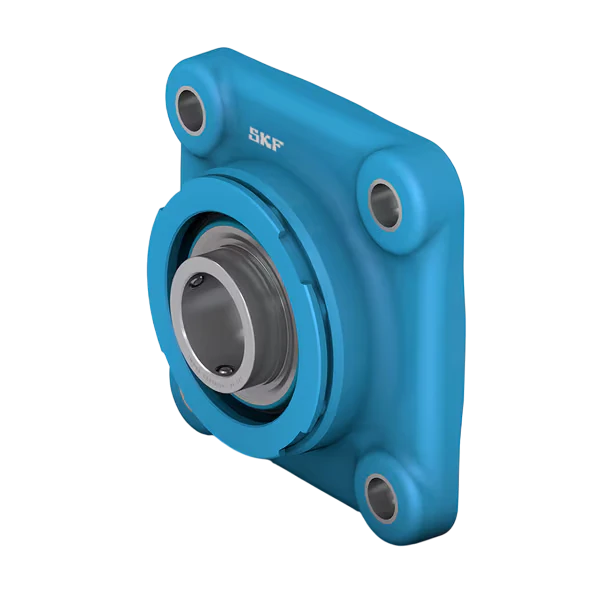

SKF F4BC 40M-TPSS flanged ball bearing unit: bore diameter (d) 40 mm, bolt hole spacing 102 mm, pilot diameter 88 mm, and basic dynamic load rating C 24.7 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
F4BC 40M-TPSS SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- F4BC 40M-TPSS
- Overall length
- 135 mm
- Overall width
- 50.7 mm
- Set screw hole distance
- 10 mm
- Mounting hole spacing
- 102 mm
- Housing total width
- 38 mm
- Centering diameter
- 88 mm
- Inner ring face to raceway centre
- 30.2 mm
- Bore diameter (d)
- 40 mm
- Width (B)
- 49.2 mm
- Basic dynamic load rating C
- 24.7 kN
- Basic static load rating C0
- 19 kN
- Mounting hole diameter
- 14.2 mm
- Fatigue load limit Pu
- 0.8 kN
- Flange width
- 17 mm
- SKU
- 6866003897-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 0.856 kg
- Volumetric weight (desi)
- 0.856
