F4BSS 30M-CPSS-DFH SKF
6866003919-YatakliFlanged ball bearing units
Quote and order options

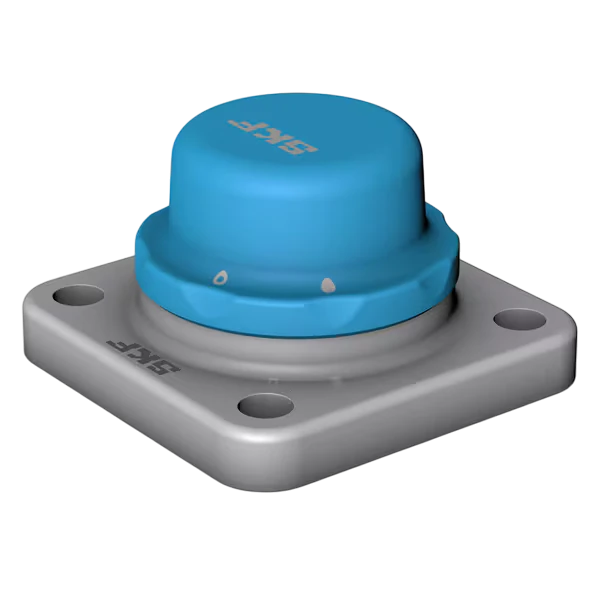

SKF F4BSS 30M-CPSS-DFH flanged ball bearing unit: bore diameter (d) 30 mm, bolt hole spacing 82.6 mm, basic dynamic load rating C 16.3 kN, and bolt hole diameter 12 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
F4BSS 30M-CPSS-DFH SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- F4BSS 30M-CPSS-DFH
- Overall length
- 110 mm
- Overall width
- 42 mm
- Set screw hole distance
- 5 mm
- Mounting hole spacing
- 82.6 mm
- Housing total width
- 34.3 mm
- Inner ring face to raceway centre
- 22.2 mm
- Bore diameter (d)
- 30 mm
- Width (B)
- 31.2 mm
- Basic dynamic load rating C
- 16.3 kN
- Basic static load rating C0
- 11.2 kN
- Mounting hole diameter
- 12 mm
- Fatigue load limit Pu
- 0.475 kN
- Flange width
- 12.5 mm
- SKU
- 6866003919-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 1.45 kg
- Volumetric weight (desi)
- 1.45
