F4BSS 30M-TPSS SKF
6866003920-YatakliFlanged ball bearing units
Quote and order options

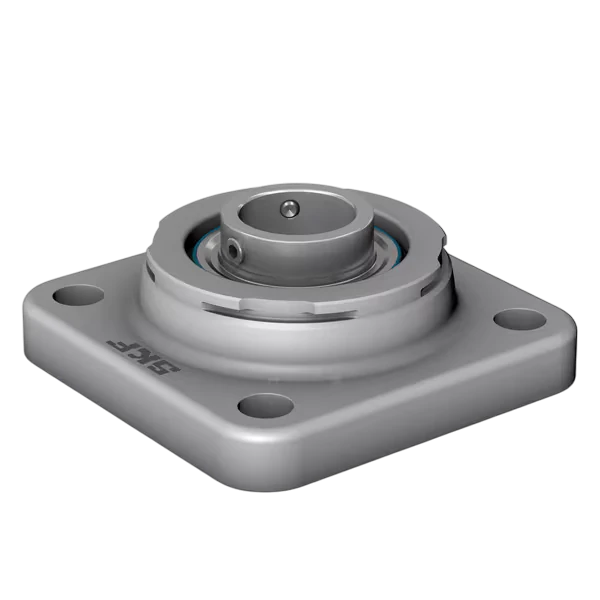

SKF F4BSS 30M-TPSS flanged ball bearing unit: bore diameter (d) 30 mm, bolt hole spacing 82.6 mm, pilot diameter 72 mm, and basic dynamic load rating C 16.3 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
F4BSS 30M-TPSS SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- F4BSS 30M-TPSS
- Overall length
- 110 mm
- Overall width
- 42 mm
- Set screw hole distance
- 5 mm
- Mounting hole spacing
- 82.6 mm
- Housing total width
- 34.3 mm
- Centering diameter
- 72 mm
- Inner ring face to raceway centre
- 22.2 mm
- Bore diameter (d)
- 30 mm
- Width (B)
- 38.1 mm
- Basic dynamic load rating C
- 16.3 kN
- Basic static load rating C0
- 11.2 kN
- Mounting hole diameter
- 12 mm
- Fatigue load limit Pu
- 0.475 kN
- Flange width
- 12.5 mm
- SKU
- 6866003920-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 1.35 kg
- Volumetric weight (desi)
- 1.35
