FLCTEY30-XL INA
6866003950-YatakliFlanged ball bearing units
Quote and order options

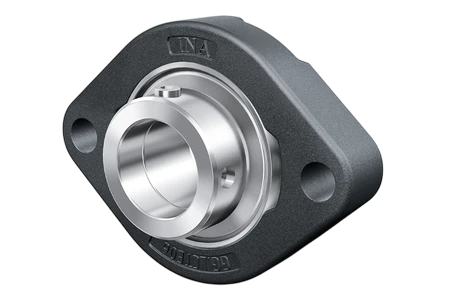

INA FLCTEY30-XL flanged ball bearing unit with bolt hole spacing 90.5 mm, basic dynamic load rating C 19.5 kN, and bolt hole diameter 11.5 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
FLCTEY30-XL INA technical data
- Brand
- INA
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- FLCTEY30-XL
- Overall width
- 32.4 mm
- Mounting hole spacing
- 90.5 mm
- Flange height
- 112.5 mm
- Basic dynamic load rating C
- 19.5 kN
- Housing flange thickness
- 22.5 mm
- Basic static load rating C0
- 11.3 kN
- Mounting hole diameter
- 11.5 mm
- Fatigue load limit Pu
- 0.48 kN
- Flange width
- 84 mm
- SKU
- 6866003950-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Germany
- Barcode (EAN)
- 4012802807714
- Net weight
- 0.68 kg
- Volumetric weight (desi)
- 0.68
