FY 2. TF SKF
6866004050-YatakliFlanged ball bearing units
Quote and order options

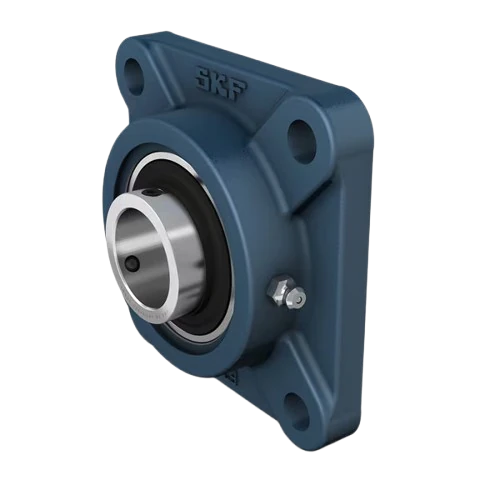

SKF FY 2. TF flanged ball bearing unit: bore diameter (d) 50.8 mm, bolt hole spacing 130 mm, pilot diameter 150.8 mm, and basic dynamic load rating C 43.6 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
FY 2. TF SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- FY 2. TF
- Overall length
- 162 mm
- Overall width
- 64.4 mm
- Set screw hole distance
- 9 mm
- Mounting hole spacing
- 130 mm
- Housing total width
- 47.5 mm
- Centering diameter
- 150.8 mm
- Inner ring face to raceway centre
- 33.4 mm
- Bore diameter (d)
- 50.8 mm
- Width (B)
- 55.6 mm
- Basic dynamic load rating C
- 43.6 kN
- Basic static load rating C0
- 29 kN
- Mounting hole diameter
- 18 mm
- Fatigue load limit Pu
- 1.25 kN
- Flange width
- 16 mm
- SKU
- 6866004050-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 3.39 kg
- Volumetric weight (desi)
- 3.394
