FY 40 TF/VA201 SKF
6866004106-YatakliFlanged ball bearing units
Quote and order options

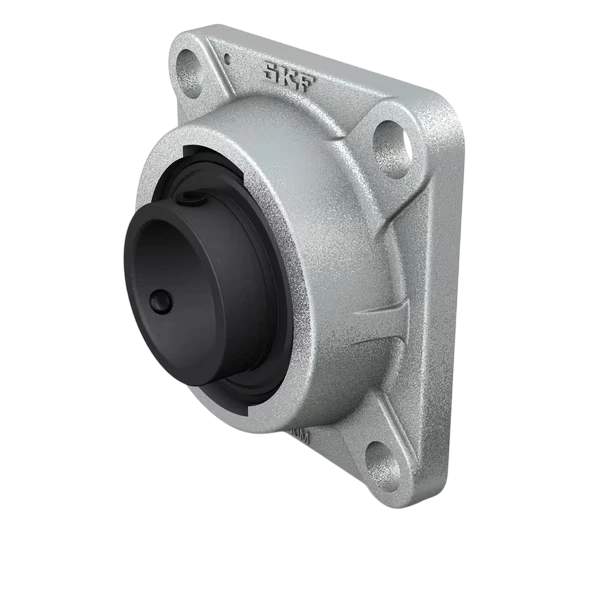

SKF FY 40 TF/VA201 flanged ball bearing unit: bore diameter (d) 40 mm, bolt hole spacing 101.5 mm, basic dynamic load rating C 30.7 kN, and bolt hole diameter 14 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
FY 40 TF/VA201 SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- FY 40 TF/VA201
- Overall length
- 130 mm
- Overall width
- 54.2 mm
- Set screw hole distance
- 8 mm
- Mounting hole spacing
- 101.5 mm
- Housing total width
- 38.5 mm
- Inner ring face to raceway centre
- 30.2 mm
- Bore diameter (d)
- 40 mm
- Width (B)
- 49.2 mm
- Basic dynamic load rating C
- 30.7 kN
- Basic static load rating C0
- 19 kN
- Mounting hole diameter
- 14 mm
- Flange width
- 14 mm
- SKU
- 6866004106-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 1.83 kg
- Volumetric weight (desi)
- 1.827
