FYAWK 30 LTHR SKF
6866004166-YatakliFlanged ball bearing units
Quote and order options

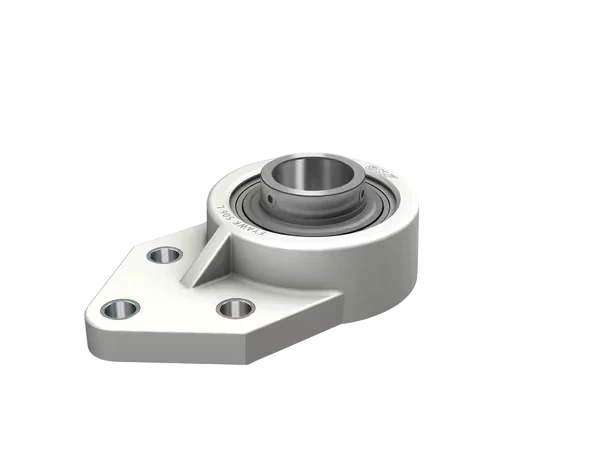

SKF FYAWK 30 LTHR flanged ball bearing unit; bore diameter (d) 30 mm, basic dynamic load rating C 16.3 kN, bolt hole diameter 10.7 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
FYAWK 30 LTHR SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- FYAWK 30 LTHR
- Overall length
- 83 mm
- Overall height
- 138 mm
- Overall width
- 41.5 mm
- Set screw hole distance
- 5 mm
- Flange overall length
- 76 mm
- Housing total width
- 32 mm
- Inner ring face to raceway centre
- 22.2 mm
- Bore diameter (d)
- 30 mm
- Width (B)
- 38.1 mm
- Basic dynamic load rating C
- 16.3 kN
- Basic static load rating C0
- 11.2 kN
- Mounting hole diameter
- 10.7 mm
- Fatigue load limit Pu
- 0.475 kN
- Flange width
- 13.3 mm
- SKU
- 6866004166-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 0.46 kg
- Volumetric weight (desi)
- 0.46
