FYC 45 TF SKF
6866004176-YatakliFlanged ball bearing units
Quote and order options

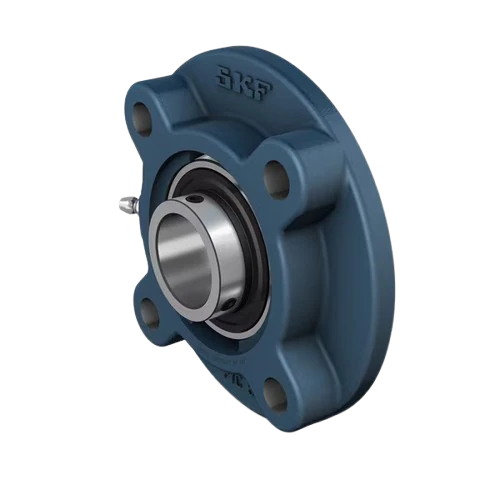

SKF FYC 45 TF flanged ball bearing unit: bore diameter (d) 45 mm, pilot diameter 105 mm, and basic dynamic load rating C 33.2 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
FYC 45 TF SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- FYC 45 TF
- Overall width
- 40.2 mm
- Set screw hole distance
- 8 mm
- Mounting hole length
- 16 mm
- Housing total width
- 37.5 mm
- Centering diameter
- 105 mm
- Inner ring face to raceway centre
- 30.2 mm
- Bore diameter (d)
- 45 mm
- Width (B)
- 49.2 mm
- Basic dynamic load rating C
- 33.2 kN
- Basic static load rating C0
- 21.6 kN
- Fatigue load limit Pu
- 0.915 kN
- Housing diameter
- 160 mm
- Flange width
- 14 mm
- SKU
- 6866004176-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 2.62 kg
- Volumetric weight (desi)
- 2.6209
