FYJ 100 TF SKF
6866004191-YatakliFlanged ball bearing units
Quote and order options

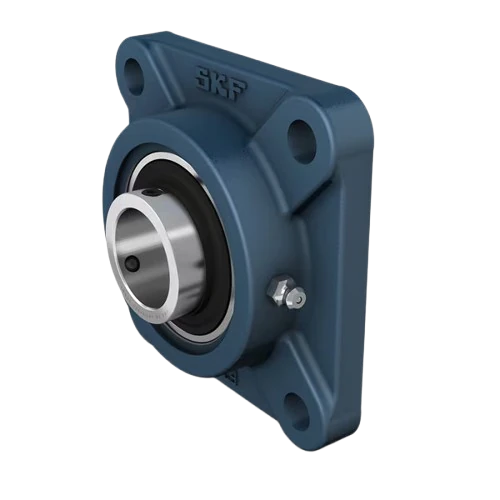

SKF FYJ 100 TF flanged ball bearing unit: bore diameter (d) 100 mm, bolt hole spacing 210 mm, pilot diameter 215.9 mm, and basic dynamic load rating C 124 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
FYJ 100 TF SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- FYJ 100 TF
- Overall length
- 265 mm
- Overall width
- 107.5 mm
- Set screw hole distance
- 18 mm
- Mounting hole spacing
- 210 mm
- Housing total width
- 70 mm
- Centering diameter
- 215.9 mm
- Inner ring face to raceway centre
- 63.4 mm
- Bore diameter (d)
- 100 mm
- Width (B)
- 98.4 mm
- Basic dynamic load rating C
- 124 kN
- Basic static load rating C0
- 93 kN
- Mounting hole diameter
- 27 mm
- Fatigue load limit Pu
- 3.35 kN
- Flange width
- 25 mm
- SKU
- 6866004191-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 14.6 kg
- Volumetric weight (desi)
- 14.613
