FYTB 35 TF/VA201 SKF
6866004321-YatakliFlanged ball bearing units
Quote and order options

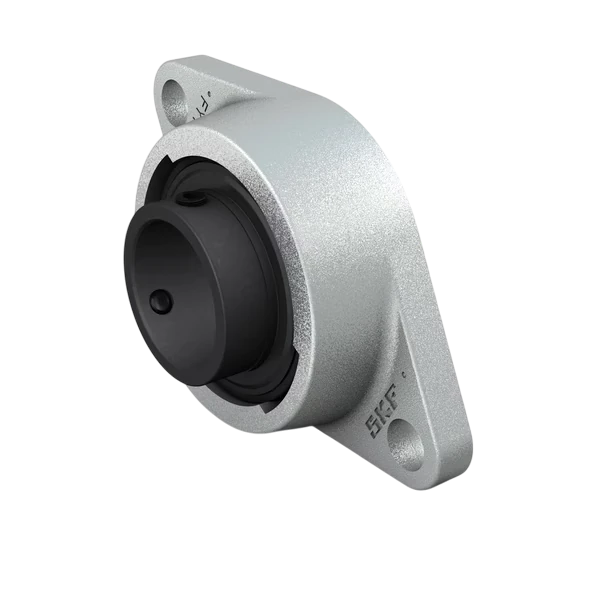

SKF FYTB 35 TF/VA201 flanged ball bearing unit: bore diameter (d) 35 mm, bolt hole spacing 130 mm, basic dynamic load rating C 25.5 kN, and bolt hole diameter 14 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
FYTB 35 TF/VA201 SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- FYTB 35 TF/VA201
- Overall length
- 96 mm
- Overall height
- 156 mm
- Overall width
- 46.4 mm
- Set screw hole distance
- 6 mm
- Mounting hole spacing
- 130 mm
- Housing total width
- 34.5 mm
- Inner ring face to raceway centre
- 25.4 mm
- Bore diameter (d)
- 35 mm
- Width (B)
- 42.9 mm
- Basic dynamic load rating C
- 25.5 kN
- Basic static load rating C0
- 15.3 kN
- Mounting hole diameter
- 14 mm
- Flange width
- 13 mm
- SKU
- 6866004321-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 1.19 kg
- Volumetric weight (desi)
- 1.186
