FYTB 40 TF SKF
6866004327-YatakliFlanged ball bearing units
Quote and order options

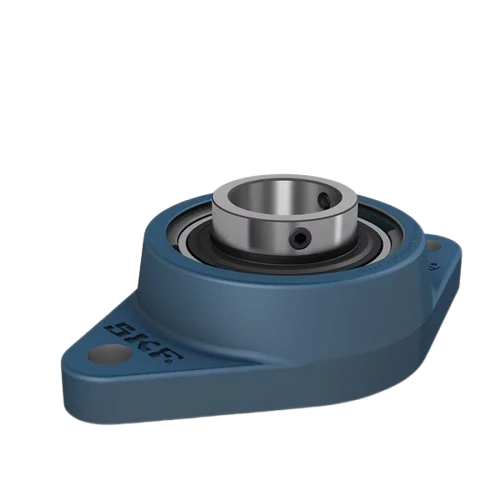

SKF FYTB 40 TF flanged ball bearing unit: bore diameter (d) 40 mm, bolt hole spacing 143.5 mm, pilot diameter 88.9 mm, and basic dynamic load rating C 30.7 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
FYTB 40 TF SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- FYTB 40 TF
- Overall length
- 102 mm
- Overall height
- 171.5 mm
- Overall width
- 54.2 mm
- Set screw hole distance
- 8 mm
- Mounting hole spacing
- 143.5 mm
- Housing total width
- 38.5 mm
- Centering diameter
- 88.9 mm
- Inner ring face to raceway centre
- 30.2 mm
- Bore diameter (d)
- 40 mm
- Width (B)
- 49.2 mm
- Basic dynamic load rating C
- 30.7 kN
- Basic static load rating C0
- 19 kN
- Mounting hole diameter
- 14 mm
- Fatigue load limit Pu
- 0.8 kN
- Flange width
- 14 mm
- SKU
- 6866004327-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 1.57 kg
- Volumetric weight (desi)
- 1.5697
