FYTB 45 LF SKF
6866004334-YatakliFlanged ball bearing units
Quote and order options

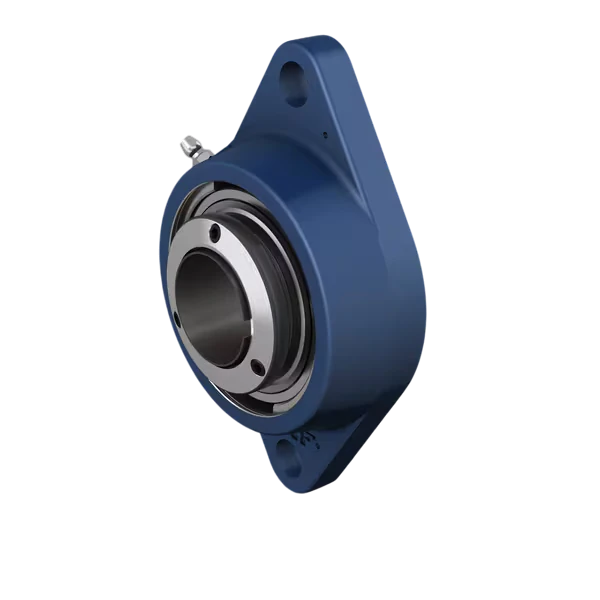

SKF FYTB 45 LF flanged ball bearing unit: bore diameter (d) 45 mm, bolt hole spacing 148.5 mm, pilot diameter 98.4 mm, and basic dynamic load rating C 33.2 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
FYTB 45 LF SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- FYTB 45 LF
- Overall length
- 111 mm
- Overall height
- 178.5 mm
- Overall width
- 50.7 mm
- Mounting hole spacing
- 148.5 mm
- Housing total width
- 39 mm
- Centering diameter
- 98.4 mm
- Inner ring width with locking collar
- 44.2 mm
- Inner ring face to raceway centre
- 26.7 mm
- Bore diameter (d)
- 45 mm
- Width (B)
- 35 mm
- Basic dynamic load rating C
- 33.2 kN
- Basic static load rating C0
- 21.6 kN
- Mounting hole diameter
- 16 mm
- Fatigue load limit Pu
- 0.915 kN
- Flange width
- 14 mm
- SKU
- 6866004334-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 1.78 kg
- Volumetric weight (desi)
- 1.781
