FYTJ 45 KF SKF
6866004384-YatakliFlanged ball bearing units
Quote and order options

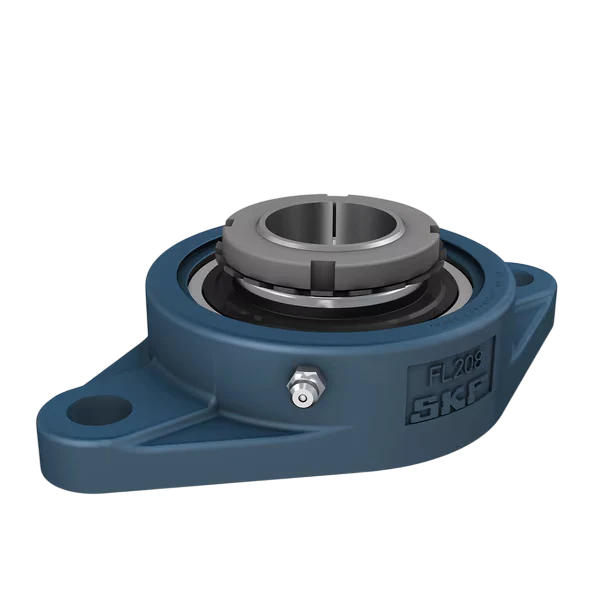

SKF FYTJ 45 KF flanged ball bearing unit: bore diameter (d) 40 mm, bolt hole spacing 148 mm, pilot diameter 98.4 mm, and basic dynamic load rating C 33.2 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
FYTJ 45 KF SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- FYTJ 45 KF
- Overall length
- 108 mm
- Overall height
- 188 mm
- Overall width
- 50.75 mm
- Mounting hole spacing
- 148 mm
- Housing total width
- 38 mm
- Centering diameter
- 98.4 mm
- Adapter sleeve width
- 50 mm
- Lock nut outer diameter
- 65 mm
- Inner ring face to raceway centre
- 28.75 mm
- Bore diameter (d)
- 40 mm
- Width (B)
- 35 mm
- Basic dynamic load rating C
- 33.2 kN
- Basic static load rating C0
- 21.6 kN
- Mounting hole diameter
- 19 mm
- Fatigue load limit Pu
- 0.915 kN
- Flange width
- 18 mm
- SKU
- 6866004384-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 1.74 kg
- Volumetric weight (desi)
- 1.742
