FYTWK 20 YTA SKF
6866004399-YatakliFlanged ball bearing units
Quote and order options

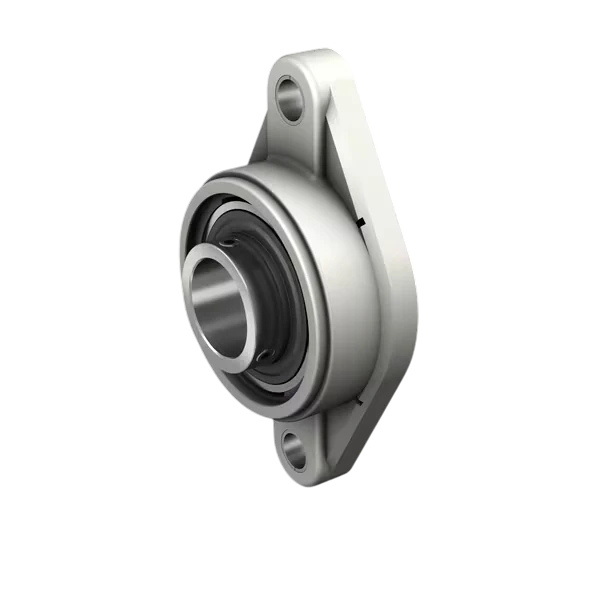

SKF FYTWK 20 YTA flanged ball bearing unit: bore diameter (d) 20 mm, bolt hole spacing 90 mm, basic dynamic load rating C 12.7 kN, and bolt hole diameter 12.3 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
FYTWK 20 YTA SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- FYTWK 20 YTA
- Overall length
- 60.5 mm
- Overall height
- 112 mm
- Overall width
- 37.3 mm
- Set screw hole distance
- 4.5 mm
- Mounting hole spacing
- 90 mm
- Housing total width
- 29.5 mm
- Inner ring face to raceway centre
- 18.3 mm
- Bore diameter (d)
- 20 mm
- Width (B)
- 31 mm
- Basic dynamic load rating C
- 12.7 kN
- Basic static load rating C0
- 6.55 kN
- Mounting hole diameter
- 12.3 mm
- Fatigue load limit Pu
- 0.28 kN
- Flange width
- 15 mm
- SKU
- 6866004399-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 0.233 kg
- Volumetric weight (desi)
- 0.233
