FYWK 40 YTA SKF
6866004423-YatakliFlanged ball bearing units
Quote and order options

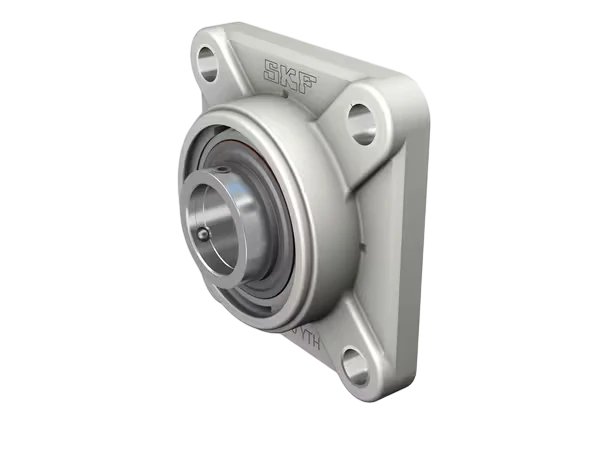

SKF FYWK 40 YTA flanged ball bearing unit: bore diameter (d) 40 mm, bolt hole spacing 101.5 mm, basic dynamic load rating C 30.7 kN, and bolt hole diameter 14.8 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
FYWK 40 YTA SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- FYWK 40 YTA
- Overall length
- 130 mm
- Overall width
- 54.2 mm
- Set screw hole distance
- 8 mm
- Mounting hole spacing
- 101.5 mm
- Housing total width
- 39 mm
- Inner ring face to raceway centre
- 30.2 mm
- Bore diameter (d)
- 40 mm
- Width (B)
- 49.2 mm
- Basic dynamic load rating C
- 30.7 kN
- Basic static load rating C0
- 19 kN
- Mounting hole diameter
- 14.8 mm
- Fatigue load limit Pu
- 0.8 kN
- Flange width
- 17 mm
- SKU
- 6866004423-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 0.953 kg
- Volumetric weight (desi)
- 0.953
