GWST 209PPB38
6866016228-RulmanDisc harrow bearings
Quote and order options

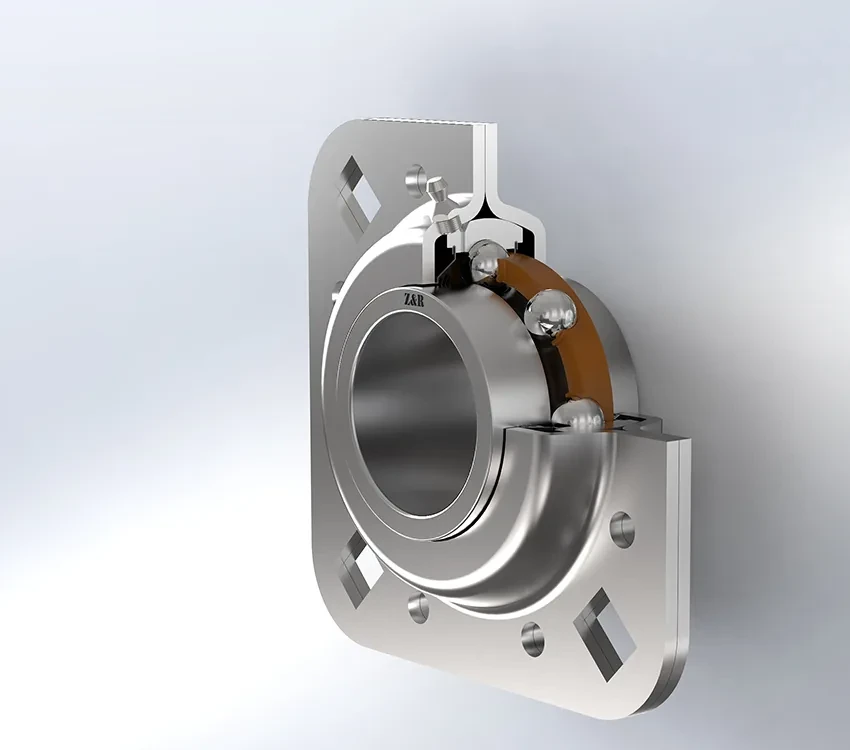

Z&R GWST 209PPB38 ball bearing. Bore diameter 38.11 mm, width 42.85 mm. Basic dynamic load rating 32.5 kN, basic static load rating 20.4 kN. Weight 1.63 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
GWST 209PPB38 technical data
- Brand
- Z&R
- Category
- Rolling bearings and plain bearings / Agricultural bearings / Disc harrow bearings
- Part number
- GWST 209PPB38
- Bore diameter (d)
- 38.11 mm
- Width (B)
- 42.85 mm
- Basic dynamic load rating C
- 32.5 kN
- Basic static load rating C0
- 20.4 kN
- Outer ring width
- 22 mm
- Overall length
- 127 mm
- Housing top width
- 3.5 mm
- Centering diameter
- 97 mm
- Flange to inner ring front
- 39 mm
- Attachment slot diameter
- 13.5 mm
- SKU
- 6866016228-Rulman
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
- Net weight
- 1.63 kg
