H 210 BGL
6866016369-MansonAdapter sleeves
Quote and order options

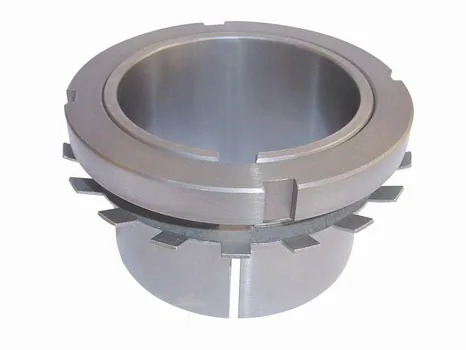

BGL H 210 adapter sleeve: shaft diameter 45 mm, bearing bore diameter 50 mm, thread M 50x1.5, overall length 35 mm, taper 1:12. Net weight 0.237 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
H 210 BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- H 210
- Lock nut outer diameter
- 70 mm
- Overall length
- 35 mm
- SKU
- 6866016369-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 0.24 kg
- Volumetric weight (desi)
- 0.1485
Weight
- Catalog net weight
- 0.237 kg
Dimensions
- Compatible bearing bore
- 50 mm
- Shaft diameter
- 45 mm
Properties
- Nominal thread
- M 50x1,5 mm
- Taper ratio
- 1:12
