H 3034 E BGL
6866016478-MansonAdapter sleeves
Quote and order options

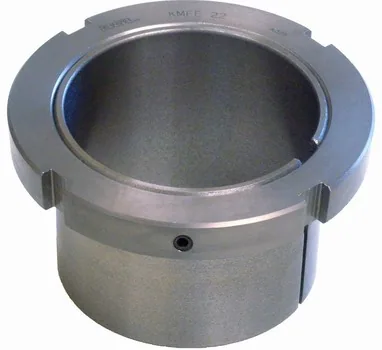

BGL H 3034 E adapter sleeve: shaft diameter 150 mm, bearing bore diameter 170 mm, thread M 170x3, overall length 101 mm, taper 1:12. Net weight 6.371 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
H 3034 E BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- H 3034 E
- Lock nut outer diameter
- 220 mm
- Overall length
- 101 mm
- SKU
- 6866016478-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 6.37 kg
- Volumetric weight (desi)
- 2.3232
Weight
- Catalog net weight
- 6.371 kg
Dimensions
- Compatible bearing bore
- 170 mm
- Shaft diameter
- 150 mm
Properties
- Nominal thread
- M 170x3 mm
- Nut locking screw
- M 10 mm
- Taper ratio
- 1:12
