H 3136 BGL
6866016488-MansonAdapter sleeves
Quote and order options

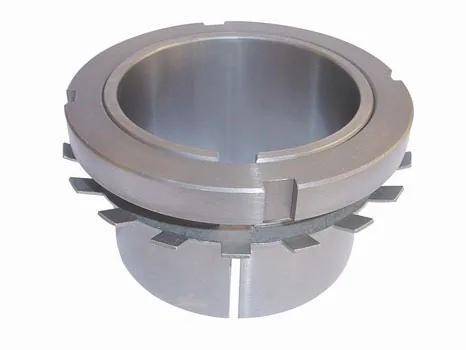

BGL H 3136 adapter sleeve: shaft diameter 160 mm, bearing bore diameter 180 mm, thread M 180x3, overall length 131 mm, taper 1:12. Net weight 8.485 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
H 3136 BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- H 3136
- Lock nut outer diameter
- 230 mm
- Overall length
- 131 mm
- SKU
- 6866016488-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 8.49 kg
- Volumetric weight (desi)
- 3.1458
Weight
- Catalog net weight
- 8.485 kg
Dimensions
- Compatible bearing bore
- 180 mm
- Shaft diameter
- 160 mm
Properties
- Nominal thread
- M 180x3 mm
- Taper ratio
- 1:12
