H 3144 X BGL
6866016512-MansonAdapter sleeves
Quote and order options

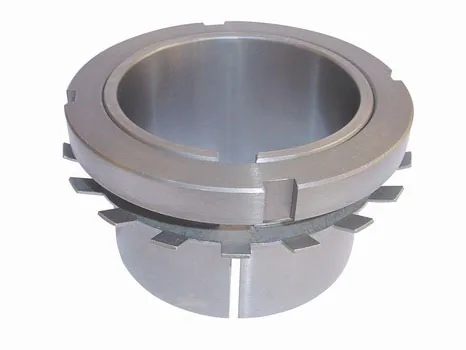

BGL H 3144 X adapter sleeve: shaft diameter 200 mm, bearing bore diameter 220 mm, thread Tr 220x4, overall length 161 mm, taper 1:12. Net weight 14 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
H 3144 X BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- H 3144 X
- Lock nut outer diameter
- 280 mm
- Overall length
- 161 mm
- SKU
- 6866016512-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 14 kg
- Volumetric weight (desi)
- 5.43
Weight
- Catalog net weight
- 14 kg
Dimensions
- Compatible bearing bore
- 220 mm
- Shaft diameter
- 200 mm
Properties
- Nominal thread
- Tr 220x4 mm
- Taper ratio
- 1:12
