HA 311 E BGL
6866016742-MansonAdapter sleeves
Quote and order options

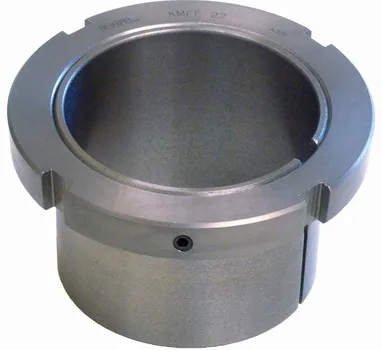

BGL HA 311 E adapter sleeve: shaft diameter 49.21 mm, bearing bore diameter 55 mm, thread M 55x1.5, overall length 45 mm, taper 1:12. Net weight 0.35 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
HA 311 E BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- HA 311 E
- Lock nut outer diameter
- 75 mm
- Overall length
- 45 mm
- SKU
- 6866016742-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 0.35 kg
- Volumetric weight (desi)
- 0.1955
Weight
- Catalog net weight
- 0.35 kg
Dimensions
- Compatible bearing bore
- 55 mm
- Shaft diameter
- 49.21 mm
Properties
- Nominal thread
- M 55x1,5 mm
- Nut locking screw
- M 6 mm
- Taper ratio
- 1:12
