HE 3184 BGL
6866017068-MansonAdapter sleeves
Quote and order options

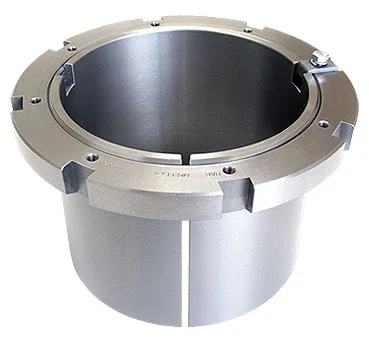

BGL HE 3184 adapter sleeve: shaft diameter 400.05 mm, bearing bore diameter 420 mm, thread Tr 420x5, overall length 304 mm, taper 1:12. Net weight 77.4 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
HE 3184 BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- HE 3184
- Lock nut outer diameter
- 540 mm
- Overall length
- 304 mm
- SKU
- 6866017068-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 77.4 kg
- Volumetric weight (desi)
- 43.68
Weight
- Catalog net weight
- 77.4 kg
Dimensions
- Compatible bearing bore
- 420 mm
- Shaft diameter
- 400.05 mm
Properties
- Nominal thread
- Tr 420x5 mm
- Taper ratio
- 1:12
