HE 3196 BGL
6866017080-MansonAdapter sleeves
Quote and order options

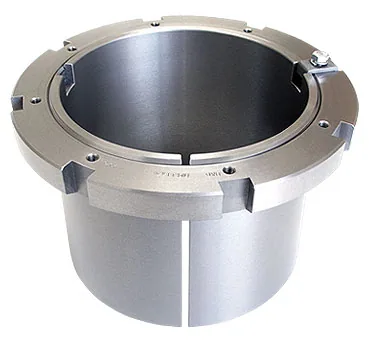

BGL HE 3196 adapter sleeve: shaft diameter 457.2 mm, bearing bore diameter 480 mm, thread Tr 480x5, overall length 335 mm, taper 1:12. Net weight 135 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
HE 3196 BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- HE 3196
- Lock nut outer diameter
- 620 mm
- Overall length
- 335 mm
- SKU
- 6866017080-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 135 kg
- Volumetric weight (desi)
- 60.8827
Weight
- Catalog net weight
- 135 kg
Dimensions
- Compatible bearing bore
- 480 mm
- Shaft diameter
- 457.2 mm
Properties
- Nominal thread
- Tr 480x5 mm
- Taper ratio
- 1:12
