HE 3288 BGL
6866017074-MansonAdapter sleeves
Quote and order options

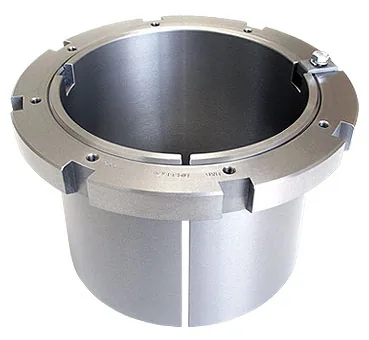

BGL HE 3288 adapter sleeve: shaft diameter 406.4 mm, bearing bore diameter 440 mm, thread Tr 440x5, overall length 361 mm, taper 1:12. Net weight 118 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
HE 3288 BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- HE 3288
- Lock nut outer diameter
- 560 mm
- Overall length
- 361 mm
- SKU
- 6866017074-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 118 kg
- Volumetric weight (desi)
- 53.9441
Weight
- Catalog net weight
- 118 kg
Dimensions
- Compatible bearing bore
- 440 mm
- Shaft diameter
- 406.4 mm
Properties
- Nominal thread
- Tr 440x5 mm
- Taper ratio
- 1:12
