HE 3296 BGL
6866017082-MansonAdapter sleeves
Quote and order options

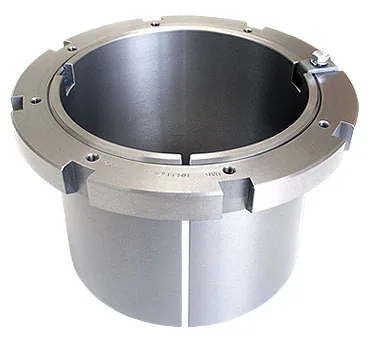

BGL HE 3296 adapter sleeve: shaft diameter 457.2 mm, bearing bore diameter 480 mm, thread Tr 480x5, overall length 397 mm, taper 1:12. Net weight 152 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
HE 3296 BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- HE 3296
- Lock nut outer diameter
- 620 mm
- Overall length
- 397 mm
- SKU
- 6866017082-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 152 kg
- Volumetric weight (desi)
- 70.4389
Weight
- Catalog net weight
- 152 kg
Dimensions
- Compatible bearing bore
- 480 mm
- Shaft diameter
- 457.2 mm
Properties
- Nominal thread
- Tr 480x5 mm
- Taper ratio
- 1:12
