HE/HS 204 BGL
6866016882-MansonAdapter sleeves
Quote and order options
BGL HE/HS 204 adapter sleeve: shaft diameter 15.87 mm, bearing bore diameter 20 mm, thread M 20x1, overall length 24 mm, taper 1:12. Net weight 0.41 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
HE/HS 204 BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- HE/HS 204

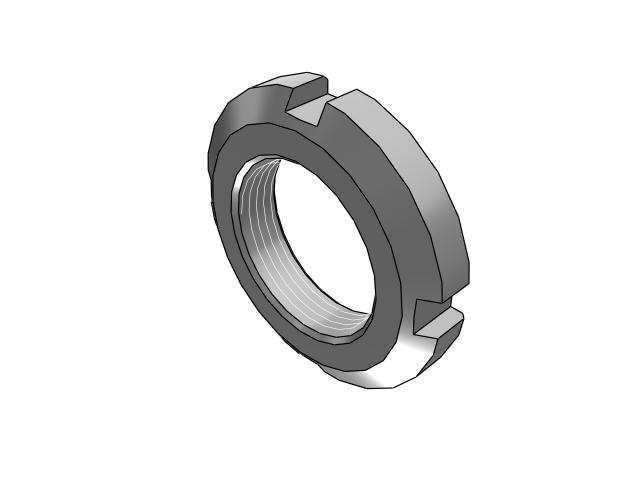

- Lock nut outer diameter
- 32 mm
- Overall length
- 24 mm
- SKU
- 6866016882-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 0.41 kg
- Volumetric weight (desi)
- 0.0397
Weight
- Catalog net weight
- 0.41 kg
Dimensions
- Compatible bearing bore
- 20 mm
- Shaft diameter
- 15.87 mm
Properties
- Nominal thread
- M 20x1 mm
- Taper ratio
- 1:12
