HM 30/560 BGL
6866018429-SomunLock nuts
Quote and order options

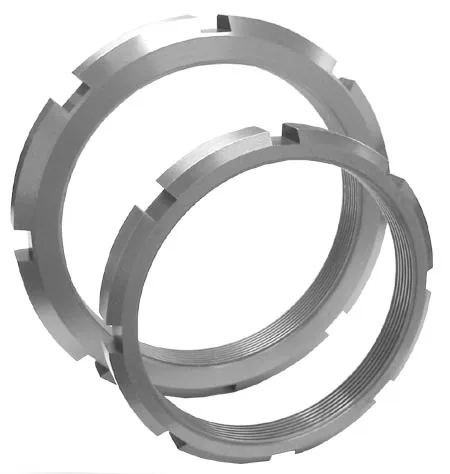

BGL HM 30/560 lock nut: thread Tr 560x6, nut outside diameter 650 mm, width 75 mm, slot depth 20 mm. Net weight 40.4 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
HM 30/560 BGL technical data
- Brand
- BGL
- Category
- Accessories / Locking devices / Lock nuts
- Part number
- HM 30/560
- Lock nut outer diameter
- 650 mm
- Lock nut width
- 75 mm
- Slot depth
- 20 mm
- SKU
- 6866018429-Somun
- HS code (6-digit)
- 731816
- CN code (8-digit)
- 73181660
- GTİP (Turkish customs tariff number, 12-digit)
- 731816600000
- Country of origin
- Brazil
- Net weight
- 40.4 kg
- Volumetric weight (desi)
- 22.6845
Compatibility
- Adapter sleeves assembled using this product
- H 30/560; H 31/560 TL; H 39/560; H 240/560
- Hydraulic adapter sleeves assembled using this product
- OH 30/560H; OH 31/560HTL; OH 39/560H; OH 240/560H
- Hydraulic withdrawal sleeves assembled using this product
- AOH 30/600; AOH 39/600
- Withdrawal sleeves assembled using this product
- AH 30/600; AH 39/600
- Compatible locking clips
- MS 30/560
- Withdrawal sleeves removed using this product
- AH 30/530; AH 39/530 G; AOH 30/530; AOH 39/530 G
Weight
- Catalog net weight
- 40.4 kg
Dimensions
- Chamfer diameter
- 610 mm
- Lock nut slot width
- 40 mm
Properties
- Nominal thread
- Tr 560x6
