HM 30/570 BGL
6866020012-SomunLock nuts
Quote and order options

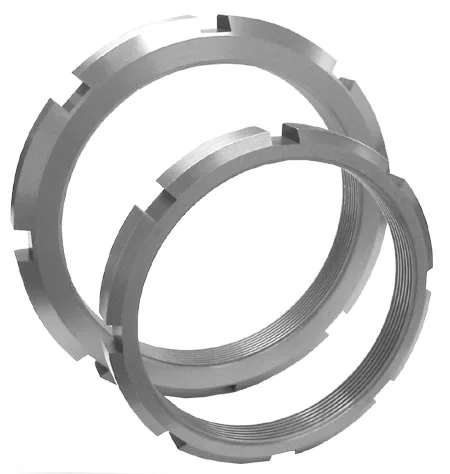

BGL HM 30/570 lock nut: thread Tr 570x6, nut outside diameter 670 mm, width 75 mm, slot depth 20 mm. Net weight 49.5 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
HM 30/570 BGL technical data
- Brand
- BGL
- Category
- Accessories / Locking devices / Lock nuts
- Part number
- HM 30/570
- Lock nut outer diameter
- 670 mm
- Lock nut width
- 75 mm
- Slot depth
- 20 mm
- SKU
- 6866020012-Somun
- HS code (6-digit)
- 731816
- CN code (8-digit)
- 73181660
- GTİP (Turkish customs tariff number, 12-digit)
- 731816600000
- Country of origin
- Brazil
- Net weight
- 49.5 kg
- Volumetric weight (desi)
- 23.9805
Compatibility
- Hydraulic withdrawal sleeves assembled using this product
- AOHX 30/600; AOH 39/600 G
- Withdrawal sleeves assembled using this product
- AHX 30/600; AH 39/600 G
- Compatible locking clips
- MS 30/530-600
Weight
- Catalog net weight
- 49.5 kg
Dimensions
- Chamfer diameter
- 630 mm
- Lock nut slot width
- 40 mm
Properties
- Nominal thread
- Tr 570x6
