HM 3052 BGL
6866018406-SomunLock nuts
Quote and order options

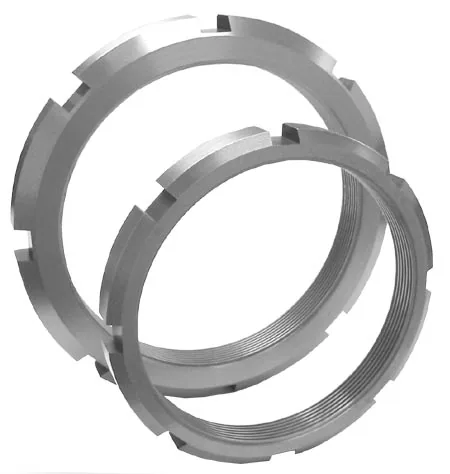

BGL HM 3052 lock nut: thread Tr 260x4, nut outside diameter 310 mm, width 34 mm, slot depth 10 mm. Net weight 4.73 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
HM 3052 BGL technical data
- Brand
- BGL
- Category
- Accessories / Locking devices / Lock nuts
- Part number
- HM 3052
- Lock nut outer diameter
- 310 mm
- Lock nut width
- 34 mm
- Slot depth
- 10 mm
- SKU
- 6866018406-Somun
- HS code (6-digit)
- 731816
- CN code (8-digit)
- 73181660
- GTİP (Turkish customs tariff number, 12-digit)
- 731816600000
- Country of origin
- Brazil
- Net weight
- 4.73 kg
- Volumetric weight (desi)
- 1.9602
Compatibility
- Adapter sleeves assembled using this product
- H 3052; HA 3052; HE 3052; H 3152 TL; HA 3152 TL; HE 3152 TL; H 3952; H 24052
- Hydraulic adapter sleeves assembled using this product
- OH 3052H; OHA 3052H; OHE 3052H; OH 3152HTL; OHA 3152HTL; OHE 3152HTL; OH 3952H; OH 24052H
- Hydraulic withdrawal sleeves assembled using this product
- AOH 256; AOH 2256; AOH 2256 G; AOH 3056; AOH 3956; AOH 3956 G
- Withdrawal sleeves assembled using this product
- AH 256; AH 2256; AH 2256 G; AH 3056; AH 3956; AH 3956 G
- Compatible locking clips
- MS 3048-MS 3052
- Withdrawal sleeves removed using this product
- AH 248; AH 2248; AH 2348; AH 3048; AH 3148; AH 24148; AOH 248; AOH 2248; AOH 2348; AOH 3048; AOH 3148; AOH 24148
Weight
- Catalog net weight
- 4.73 kg
Dimensions
- Chamfer diameter
- 290 mm
- Lock nut slot width
- 20 mm
Properties
- Nominal thread
- Tr 260x4
