KM 38 INOX BGL
6866019158-SomunLock nuts
Quote and order options

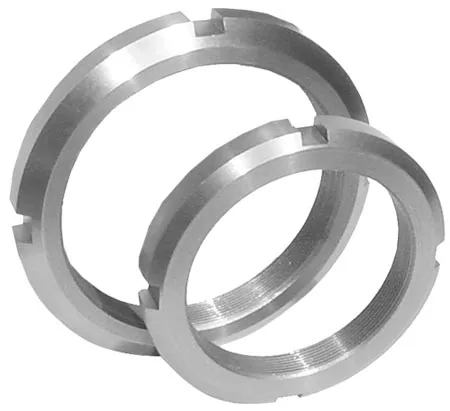

BGL KM 38 INOX lock nut: thread M 190x3, nut outside diameter 240 mm, width 28 mm, slot depth 8 mm. Net weight 3.028 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
KM 38 INOX BGL technical data
- Brand
- BGL
- Category
- Accessories / Locking devices / Lock nuts
- Part number
- KM 38 INOX
- Lock nut outer diameter
- 240 mm
- Lock nut width
- 28 mm
- Slot depth
- 8 mm
- SKU
- 6866019158-Somun
- HS code (6-digit)
- 731816
- CN code (8-digit)
- 73181660
- GTİP (Turkish customs tariff number, 12-digit)
- 731816600000
- Country of origin
- Brazil
- Net weight
- 3.03 kg
- Volumetric weight (desi)
- 1.0816
Compatibility
- Adapter sleeves assembled using this product
- H 3138; HA 3138; HE 3138; HS 3138; H 2338; HA 2338; HE 2338; HS 2338; H 24138
- Hydraulic adapter sleeves assembled using this product
- OH 3138H; OHA 3138H; OHE 3138H; OHS 3138H; OH 2338H; OHA 2338H; OHE 2338H; OHS 2338H; OH 24138H
- Hydraulic withdrawal sleeves assembled using this product
- AOH 240 G; AOH 2240; AOH 2340; AOH 3040; AOH 3040 G; AOH 3140; AOH 3240; AOH 3940; AOH 24040; AOH 24140
- Withdrawal sleeves assembled using this product
- AH 240 G; AH 2240; AH 2340; AH 3040; AH 3040 G; AH 3140; AH 3240; AH 3940; AH 24040; AH 24140
- Compatible lock washers
- MB 38
- Withdrawal sleeves removed using this product
- AH 2334; AH 3134; AH 3234; AH 236; AH 2236 G; AH 2336 G; AH 3036; AH 3136 G; AH 3236 G; AH 3936; AH 24036; AH 24136; AOH 2334; AOH 3134; AOH 3234; AOH 236; AOH 2236 G; AOH 2336 G; AOH 3036; AOH 3136 G; AOH 3236 G; AOH 3936; AOH 24036; AOH 24136
Weight
- Catalog net weight
- 3.028 kg
Dimensions
- Chamfer diameter
- 214 mm
- Lock nut slot width
- 18 mm
Properties
- Nominal thread
- M 190x3
