KMFE 38 BGL
6866018641-SomunLock nuts
Quote and order options

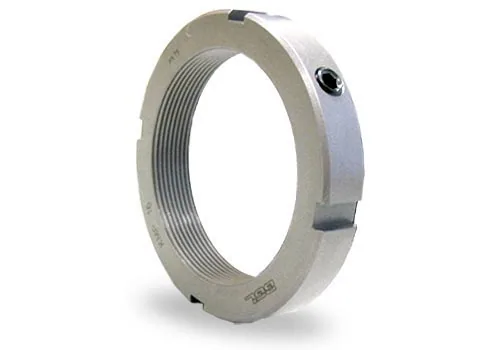

BGL KMFE 38 lock nut: thread M 190x3, nut outside diameter 240 mm, width 34 mm, slot depth 8 mm. Net weight 3.1 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
KMFE 38 BGL technical data
- Brand
- BGL
- Category
- Accessories / Locking devices / Lock nuts
- Part number
- KMFE 38
- Lock nut outer diameter
- 240 mm
- Lock nut width
- 34 mm
- Slot depth
- 8 mm
- SKU
- 6866018641-Somun
- HS code (6-digit)
- 731816
- CN code (8-digit)
- 73181660
- GTİP (Turkish customs tariff number, 12-digit)
- 731816600000
- Country of origin
- Brazil
- Net weight
- 3.1 kg
- Volumetric weight (desi)
- 1.2168
Weight
- Catalog net weight
- 3.1 kg
Dimensions
- Lock nut recess diameter
- 207 mm
- Lock nut slot width
- 18 mm
Properties
- Nominal thread
- M 190x3
- Nut locking screw
- M 10
