KMP 4 BGL
6866018648-SomunLock nuts
Quote and order options

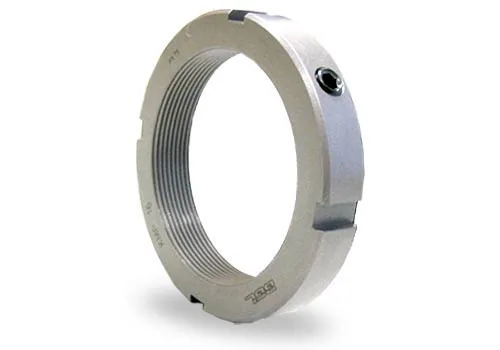

BGL KMP 4 lock nut: thread M 20x1, nut outside diameter 32 mm, width 9 mm, slot depth 2 mm. Net weight 0.03 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
KMP 4 BGL technical data
- Brand
- BGL
- Category
- Accessories / Locking devices / Lock nuts
- Part number
- KMP 4
- Lock nut outer diameter
- 32 mm
- Lock nut width
- 9 mm
- Slot depth
- 2 mm
- SKU
- 6866018648-Somun
- HS code (6-digit)
- 731816
- CN code (8-digit)
- 73181660
- GTİP (Turkish customs tariff number, 12-digit)
- 731816600000
- Country of origin
- Brazil
- Net weight
- 0.03 kg
- Volumetric weight (desi)
- 0.027
Weight
- Catalog net weight
- 0.03 kg
Dimensions
- Lock nut recess diameter
- 28 mm
- Lock nut slot width
- 4 mm
Properties
- Nominal thread
- M 20x1
- Nut locking screw
- M 5
