KMT 24 BGL
6866018729-SomunLock nuts
Quote and order options

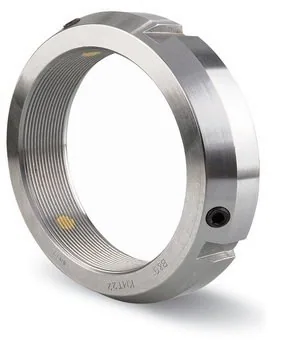

BGL KMT 24 lock nut: thread M 120x2, nut outside diameter 155 mm, width 32 mm, slot depth 4 mm. Net weight 1.625 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
KMT 24 BGL technical data
- Brand
- BGL
- Category
- Accessories / Locking devices / Lock nuts
- Part number
- KMT 24
- Lock nut outer diameter
- 155 mm
- Lock nut width
- 32 mm
- Slot depth
- 4 mm
- SKU
- 6866018729-Somun
- HS code (6-digit)
- 731816
- CN code (8-digit)
- 73181660
- GTİP (Turkish customs tariff number, 12-digit)
- 731816600000
- Country of origin
- Brazil
- Net weight
- 1.63 kg
- Volumetric weight (desi)
- 0.5308
Weight
- Catalog net weight
- 1.625 kg
Dimensions
- Lock nut projection diameter
- 144 mm
- Lock nut slot width
- 10 mm
- Locking screw tightening torque
- 35 Nm
Properties
- Nominal thread
- M 120x2 mm
- Nut locking screw
- M 10
