KMT 38 BGL
6866018736-SomunLock nuts
Quote and order options

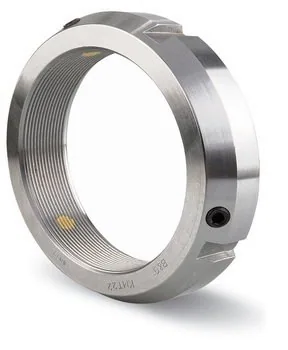

BGL KMT 38 lock nut: thread M 190x3, nut outside diameter 225 mm, width 32 mm, slot depth 7 mm. Net weight 2.255 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
KMT 38 BGL technical data
- Brand
- BGL
- Category
- Accessories / Locking devices / Lock nuts
- Part number
- KMT 38
- Lock nut outer diameter
- 225 mm
- Lock nut width
- 32 mm
- Slot depth
- 7 mm
- SKU
- 6866018736-Somun
- HS code (6-digit)
- 731816
- CN code (8-digit)
- 73181660
- GTİP (Turkish customs tariff number, 12-digit)
- 731816600000
- Country of origin
- Brazil
- Net weight
- 2.26 kg
- Volumetric weight (desi)
- 1.0404
Weight
- Catalog net weight
- 2.255 kg
Dimensions
- Lock nut projection diameter
- 214 mm
- Lock nut slot width
- 16 mm
- Locking screw tightening torque
- 35 Nm
Properties
- Nominal thread
- M 190x3 mm
- Nut locking screw
- M 10
