KMTA 10 BGL
6866018750-SomunLock nuts
Quote and order options

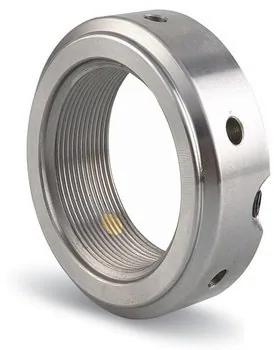

BGL KMTA 10 lock nut: thread M 50x1.5, nut outside diameter 70 mm, width 24 mm. Net weight 0.29 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
KMTA 10 BGL technical data
- Brand
- BGL
- Category
- Accessories / Locking devices / Lock nuts
- Part number
- KMTA 10
- Lock nut outer diameter
- 70 mm
- Lock nut width
- 24 mm
- SKU
- 6866018750-Somun
- HS code (6-digit)
- 731816
- CN code (8-digit)
- 73181660
- GTİP (Turkish customs tariff number, 12-digit)
- 731816600000
- Country of origin
- Brazil
- Net weight
- 0.29 kg
- Volumetric weight (desi)
- 0.1188
Weight
- Catalog net weight
- 0.29 kg
Dimensions
- Lock nut projection diameter
- 63 mm
- Locking screw tightening torque
- 8 Nm
- Spanner pin hole N1
- 4.3 mm
- Spanner pin hole N2
- 6 mm
Properties
- Nominal thread
- M 50x1,5 mm
- Nut locking screw
- M 6
