KMTA 16 BGL
6866018756-SomunLock nuts
Quote and order options

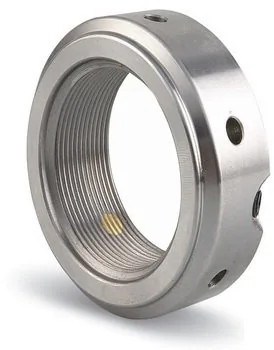

BGL KMTA 16 lock nut: thread M 80x2, nut outside diameter 110 mm, width 30 mm. Net weight 0.93 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
KMTA 16 BGL technical data
- Brand
- BGL
- Category
- Accessories / Locking devices / Lock nuts
- Part number
- KMTA 16
- Lock nut outer diameter
- 110 mm
- Lock nut width
- 30 mm
- SKU
- 6866018756-Somun
- HS code (6-digit)
- 731816
- CN code (8-digit)
- 73181660
- GTİP (Turkish customs tariff number, 12-digit)
- 731816600000
- Country of origin
- Brazil
- Net weight
- 0.93 kg
- Volumetric weight (desi)
- 0.2817
Weight
- Catalog net weight
- 0.93 kg
Dimensions
- Lock nut projection diameter
- 97 mm
- Locking screw tightening torque
- 18 Nm
- Spanner pin hole N1
- 6.4 mm
- Spanner pin hole N2
- 8 mm
Properties
- Nominal thread
- M 80x2 mm
- Nut locking screw
- M 8
